To complete setting up a user behavior data pipeline from your website to Google BigQuery, you need to integrate the OWOX BI tracking code on your website. If you're using Google Tag Manager to send website event data to Google Analytics, you can also use it to integrate the OWOX BI tracking code.
It is highly recommended to check your website's Content Security Policy before embedding the tracking code. To run custom code added by users, the two listed GTM domains must be whitelisted on your website server. Make sure your Content-Security-Policy Header includes the script-src directive with the unsafe-inline and unsafe-eval keywords as follows: script-src 'unsafe-eval' 'unsafe-inline' https://tagmanager.google.com/ https://www.googletagmanager.com/. This directive is necessary for the correct work of the OWOX BI tracking code.
How to set up website data collection to Google BigQuery tracking with Google Tag Manager
Step 1: Create customTask variable

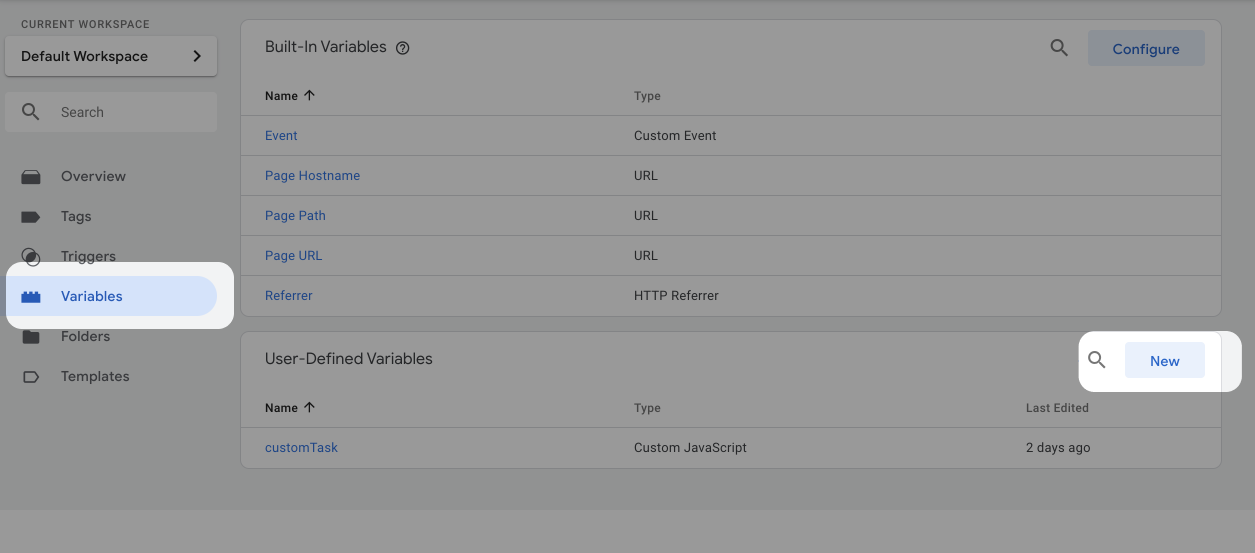

1. Go to the Variables > User-Defined Variables and click New.

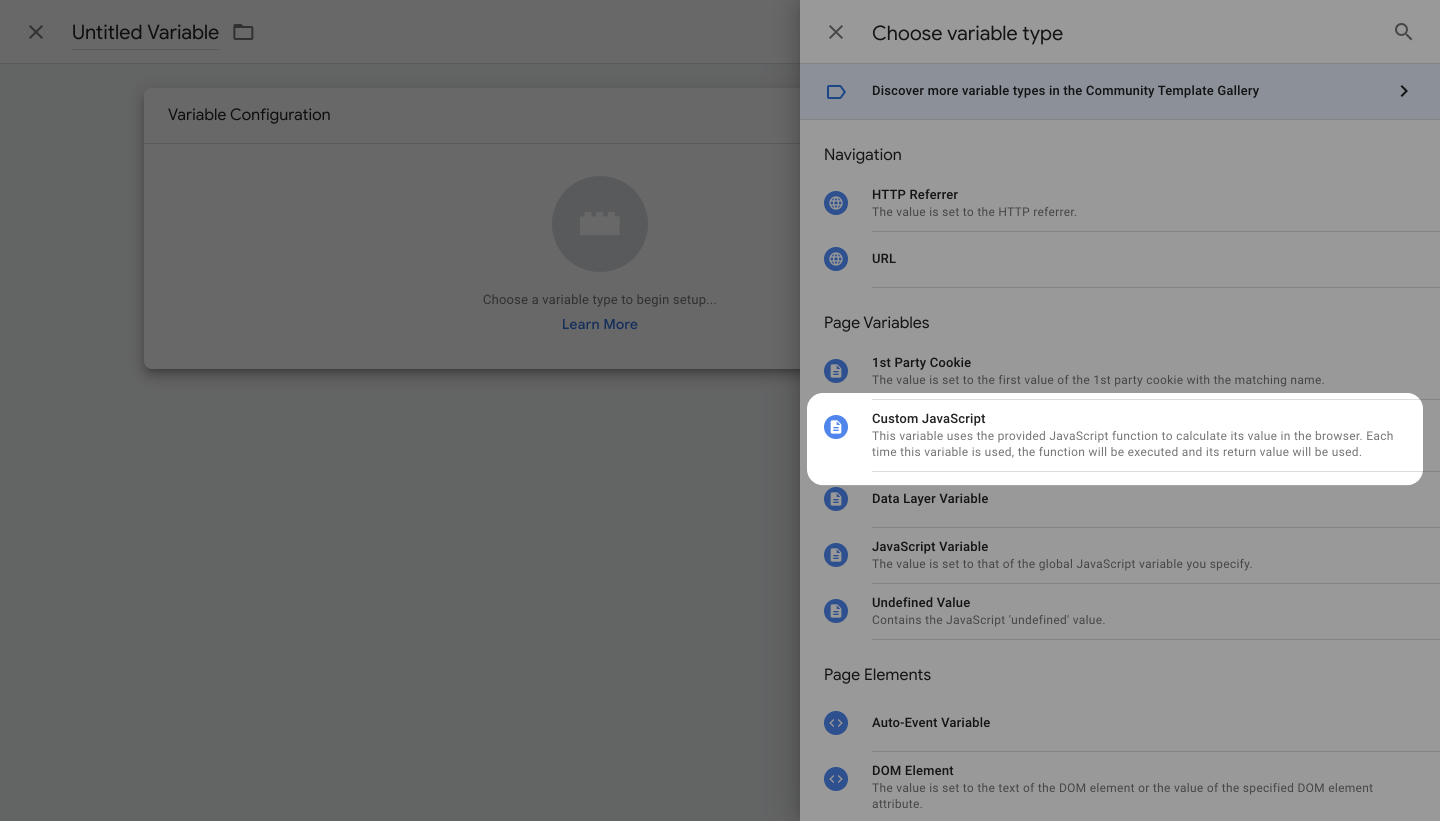

2. In the window opened, click the Variable Configuration block and select Custom JavaScript as a variable type.

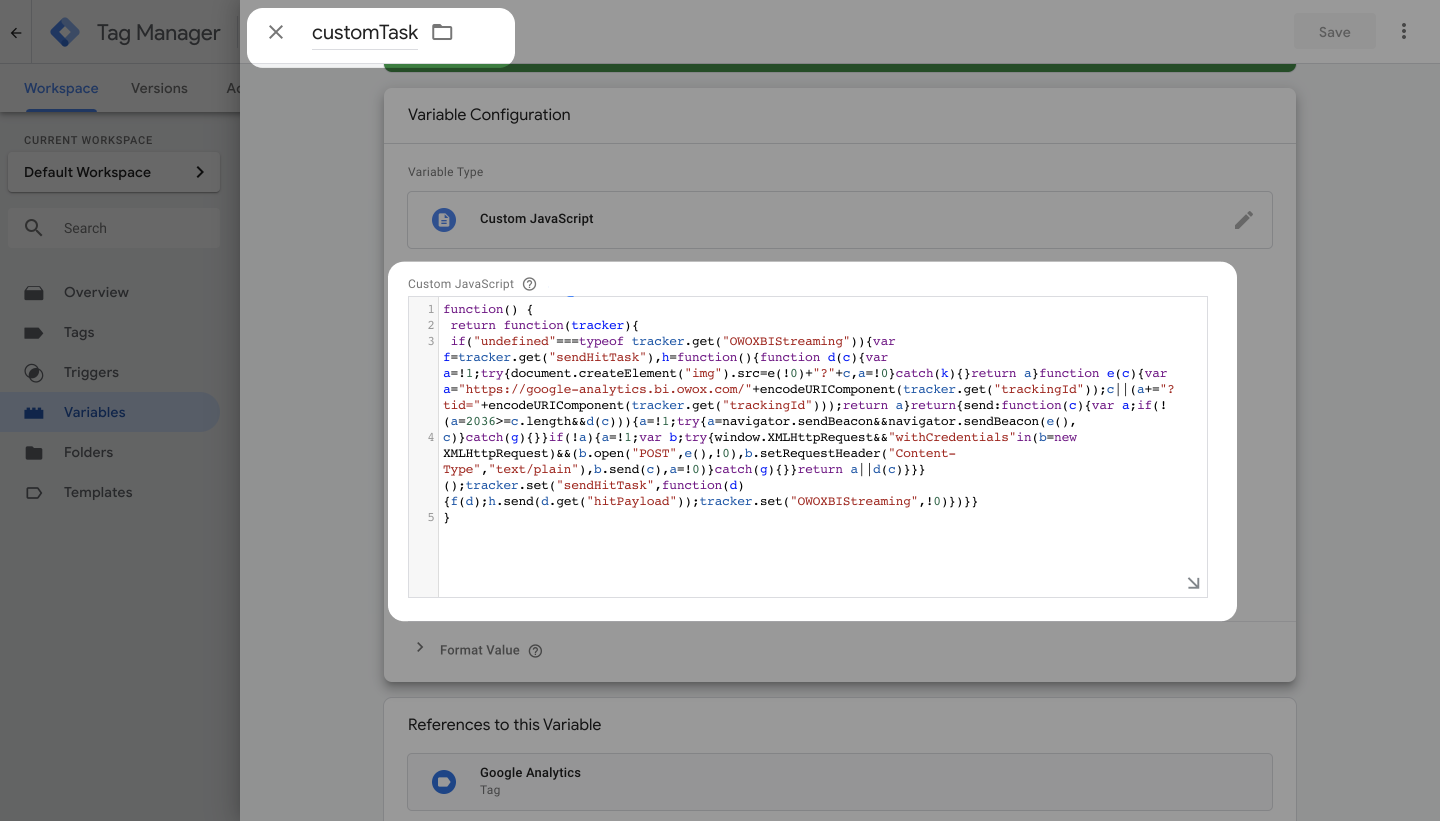

3. Name the variable as customTask. In the Custom JavaScript window, paste the OWOX BI tracking code.
You can find the code on your user behavior data pipeline under Settings > JavaScript code for hit and session data collection or copy it below:
function() {
return function(tracker){
if("undefined"===typeof tracker.get("OWOXBIStreaming")){var f=tracker.get("sendHitTask"),h=function(){function d(c){var a=!1;try{document.createElement("img").src=e(!0)+"?"+c,a=!0}catch(k){}return a}function e(c){var a="https://google-analytics.bi.owox.com/"+encodeURIComponent(tracker.get("trackingId"));c||(a+="?tid="+encodeURIComponent(tracker.get("trackingId")));return a}return{send:function(c){var a;if(!(a=2036>=c.length&&d(c))){a=!1;try{a=navigator.sendBeacon&&navigator.sendBeacon(e(),
c)}catch(g){}}if(!a){a=!1;var b;try{window.XMLHttpRequest&&"withCredentials"in(b=new XMLHttpRequest)&&(b.open("POST",e(),!0),b.setRequestHeader("Content-Type","text/plain"),b.send(c),a=!0)}catch(g){}}return a||d(c)}}}();tracker.set("sendHitTask",function(d){f(d);h.send(d.get("hitPayload"));tracker.set("OWOXBIStreaming",!0)})}}
}Consider this OWOX BI code implementation if you also need to submit the clientId to Google Analytics via the Google Tag Manager.
4. Click Save to add the code to the customTask variable.
Step 2: Add customTask variable to Universal Analytics tags
NoteBefore proceeding with this step, ensure you have created the Universal Analytics tags in your Google Analytics.
At this step, you need to add your customTask to all the Universal Analytics tags (for example, goals or transaction tracking tags, etc.) that you want to use for data transferring to Google Big BigQuery. Choose one of the options below:
- Adding customTask via setting an additional field
- Adding customTask via Google Analytics Settings variable
You can't use more than one customTask in a single GTM tag. The function of each new customTask overrides the function of the previous one.
If it's crucial for you to use several customTask functions in a single tag, you can join their JavaScript code within a single customTask.
Remember, that modifying the OWOX BI tracking code can lead to data collection issues.
Adding customTask via setting an additional field
1. Go to Universal Google Analytics tag and enter the Edit mode by clicking the relevant icon.

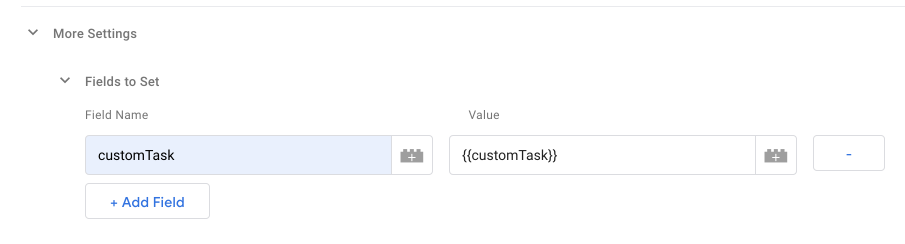

2. Select More settings > Fields to set > + Add Field. Enter customTask in the Field name and {{customTask}} in the Value fields.
3. Click Save.
Next, complete steps 3 and 4 described on the current page.
Adding customTask via Google Analytics Settings variable
This option requires creating the Google Analytics Settings variable first. To create Google Analytics Settings variable and then add your customTask to tags, complete the following actions:
1. Go to the Variables > User-Defined Variables and click New.

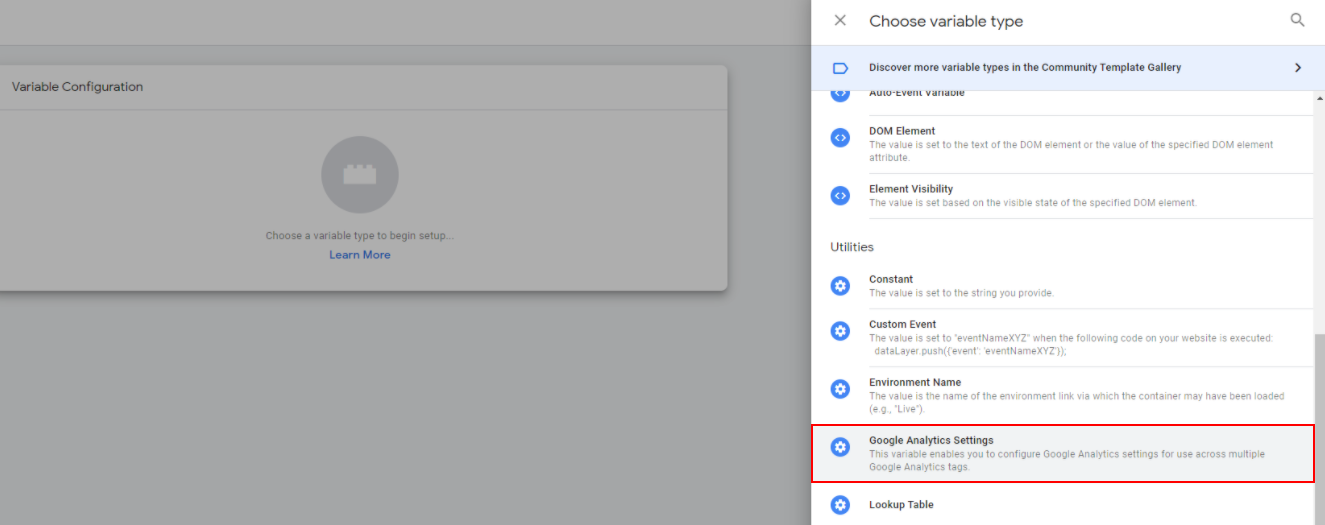

2. In the window opened, click the Variable Configuration block and select Google Analytics Settings under the Utilities heading.
3. In the variable settings, specify the Variable name (you can use your Tracking ID value as a name) and Tracking ID – an identifier of your Google Analytics property you're using to collect data.

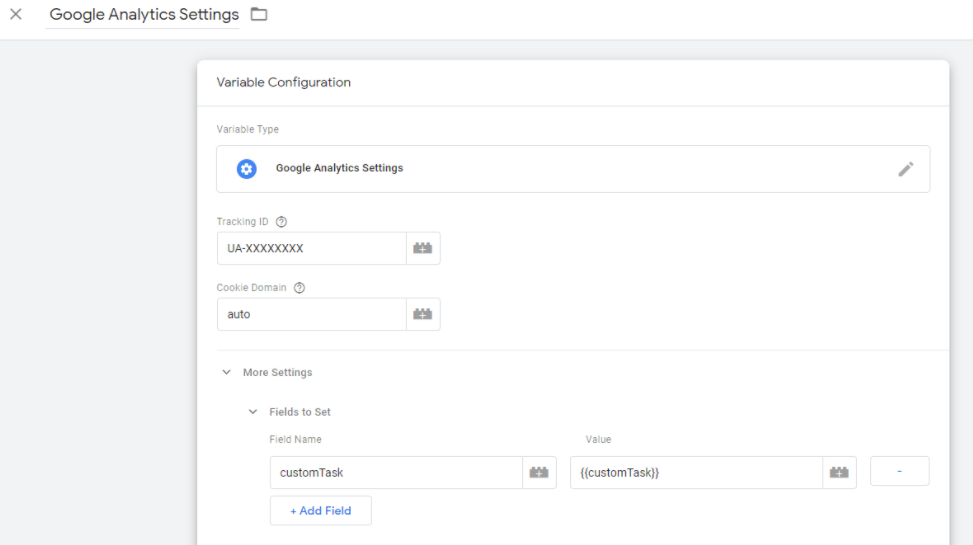

4. Select More settings > Fields to set. Enter customTask as a Field name and {{customTask}} as a Value.

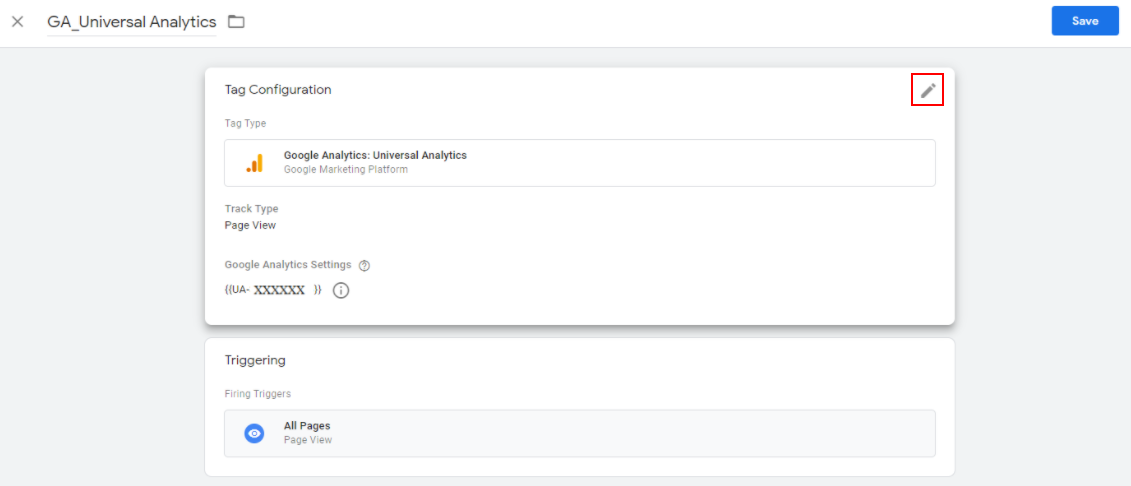

5. Go to Universal Google Analytics tag and enter the Edit mode by clicking the relevant icon.

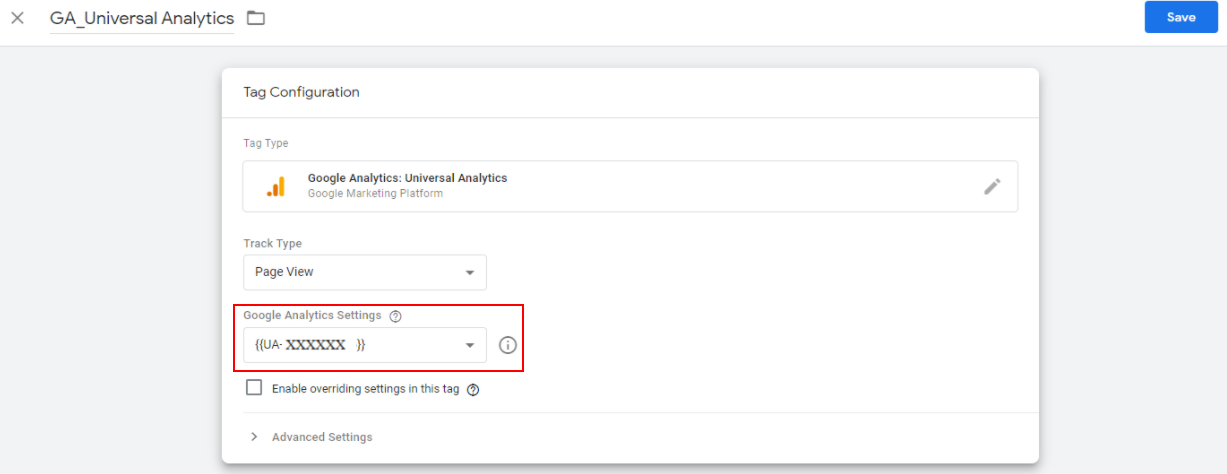

6. Add the Google Analytics Settings variable to the Google Analytics Settings field.
7. Click Save.
Next, complete steps 3 and step 4 described below.
Step 3: Check up the tag work
After you edit and save Universal Analytics tags, make sure they work properly before publishing the container.

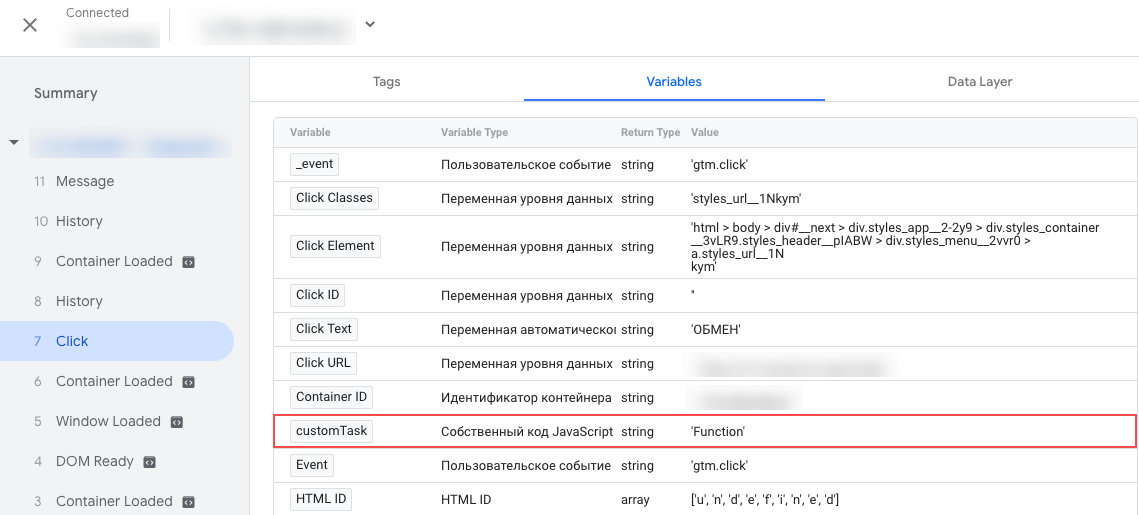

To do it, enable Preview Mode for the current workspace. Then, go to your website and make a few test clicks on a website page. To review the testing results, use GTM debug console window at the bottom of your browser. Select Click event in the left column, then switch to the Variables tab in the top navigation. Search for the customTask variable in the list. If the customTask variable is configured properly, it will contain the value 'Function'.
If the customTask variable contains the value 'Undefined', make sure you complete Step 1 and Step 2 described above. Please check out the possible reasons for the customTask doesn't work:
- OWOX BI code snippet is copied incorrectly into the customTask;
- more than one customTask is used in a single GTM tag;
- GTM domains are not allowed on your website server.
Step 4: Publish GTM container
If the GTM tags are configured properly, publish the container.

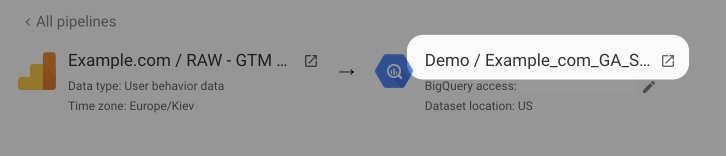

Then go to your user behavior data pipeline page in OWOX BI and click the specified Google BigQuery dataset link.
If the code is integrated correctly, a "streaming_" table will appear in the dataset. The table should receive first hit data within 2 through 5 minutes after you've updated your Google Tag Manager container.

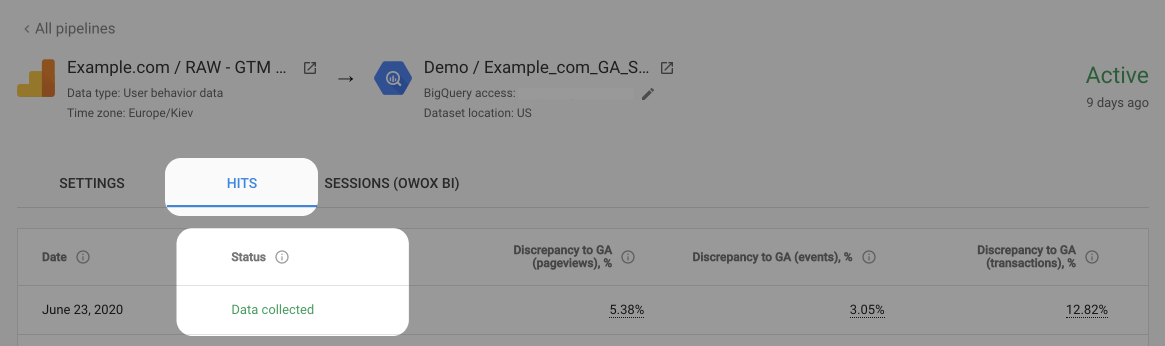

In 24 hours after the code integration, you will see the Data collected status next to the previous day's statistics under the Hits tab.
After another 24 hours, you'll see a notification about the session data collected under the Sessions tab. The session data will also be available in your Google BigQuery dataset in a separate table.
Other data collection use cases
Send data to Google BigQuery only and block Google Analytics tracking
This can be useful if you want not to exceed Google Analytics limits or if your website generates more hits than GA can receive and you don't need to collect incomplete data there.
If it is your case, the code snippet listed below must be applied instead of the integration code from the pipeline page. Copy the following code for sending data to Google BigQuery only into the customTask:
function() {
return function(tracker){
if("undefined"===typeof tracker.get("OWOXBIStreaming")){var f=tracker.get("sendHitTask"),h=function(){function d(c){var a=!1;try{document.createElement("img").src=e(!0)+"?"+c,a=!0}catch(k){}return a}function e(c){var a="https://google-analytics.bi.owox.com/"+encodeURIComponent(tracker.get("trackingId"));c||(a+="?tid="+encodeURIComponent(tracker.get("trackingId")));return a}return{send:function(c){var a;if(!(a=2036>=c.length&&d(c))){a=!1;try{a=navigator.sendBeacon&&navigator.sendBeacon(e(),
c)}catch(g){}}if(!a){a=!1;var b;try{window.XMLHttpRequest&&"withCredentials"in(b=new XMLHttpRequest)&&(b.open("POST",e(),!0),b.setRequestHeader("Content-Type","text/plain"),b.send(c),a=!0)}catch(g){}}return a||d(c)}}}();tracker.set("sendHitTask",function(d){h.send(d.get("hitPayload"));tracker.set("OWOXBIStreaming",!0)})}}
}Collect special values to Google BigQuery only
Google Analytics's tracking code doesn't process some specific parameters like phone numbers or emails. Yet, if you need to collect this data to Google BigQuery only, you can create a separate Google Tag Manager tag with the customTask. Read this article to learn more.
Collect clientId to Google Analytics Custom Dimension via OWOX BI tracking code
If you run into a situation where you need to use the Google Tag Manager on the same website to integrate the OWOX BI tracking code and to submit the clientId to Google Analytics, then you can apply the adapted OWOX BI tracking code. This code allows you:
- to prevent the conflict of multiple customTasks in a single GTM tag (i.e. when the function of each new customTask overrides the function of the previous one);
- to submit the clientId to the Google Analytics Custom Dimension;
- to collect hits into the Google BigQuery tables.
To do it, insert the code below into your customTask variable instead of the default OWOX BI tracking code:
function() {
return function(tracker){
if("undefined"===typeof tracker.get("OWOXBIStreaming")){tracker.set("dimension2", tracker.get("clientId")); var f=tracker.get("sendHitTask"),h=function(){function d(c){var a=!1;try{document.createElement("img").src=e(!0)+"?"+c,a=!0}catch(k){}return a}function e(c){var a="https://google-analytics.bi.owox.com/"+encodeURIComponent(tracker.get("trackingId"));c||(a+="?tid="+encodeURIComponent(tracker.get("trackingId")));return a}return{send:function(c){var a;if(!(a=2036>=c.length&&d(c))){a=!1;try{a=navigator.sendBeacon&&navigator.sendBeacon(e(),
c)}catch(g){}}if(!a){a=!1;var b;try{window.XMLHttpRequest&&"withCredentials"in(b=new XMLHttpRequest)&&(b.open("POST",e(),!0),b.setRequestHeader("Content-Type","text/plain"),b.send(c),a=!0)}catch(g){}}return a||d(c)}}}();tracker.set("sendHitTask",function(d){f(d);h.send(d.get("hitPayload"));tracker.set("OWOXBIStreaming",!0)})}}
}
Please update the figure in "dimension2" with the actual index of your Client ID parameter in Google Analytics.
